Compare DEMs produced by two open-source stereo photogrammetry pipelines on the same WorldView-3 stereo pair:

  • ASP (NASA Ames Stereo Pipeline) — processed in the UCSD notebook

  • SETSM (Surface Extraction with TIN-based Search-space Minimization) — Ohio State / Polar Geospatial Center

Both pipelines accept raw satellite imagery with RPC camera models and produce gridded DSMs.

Source Data#

IARPA CORE3D SpaceNet UCSD dataset — two WorldView-3 panchromatic acquisitions:

Catalog ID

Date

Off-nadir

Image size

1040010007A93700

2015-02-12

8.4°

43008 × 46080 px

1040010007CA4D00

2015-02-24

12.9°

43008 × 46080 px

This is the same pair (21deg_12d, convergence 21.2°) used in the scene-selection notebook and the ASP processing notebook.

Approach#

SETSM is open-source (Apache 2.0), pure C++ with no GPU requirement. We built and ran it via Docker to avoid host dependency conflicts.

SETSM reads only *.tif and *.raw images, so the source NTFs must be converted up-front. Section 2.1.4 of the SETSM User Manual provides the exact gdal_translate command:

gdal_translate -q --config GDAL_CACHEMAX 2048 -ot UInt16 -co NBITS=16 \
    -co bigtiff=if_safer -co tiled=yes -co compress=lzw input.ntf output.tif

The WorldView NTFs use JPEG2000 internal compression, so the GDAL build doing the conversion needs a JP2 driver — ASP’s bundled gdal_translate (e.g. ~/asp/dev/bin/gdal_translate) ships with JP2OpenJPEG. The output TIFFs end up larger than the source NTFs (~2.4 GB each here) because LZW does not compress 11-bit panchromatic content as efficiently as JPEG2000.

SETSM then works on those TIFFs with RPC camera models read from the WorldView XML metadata files (the XMLs live alongside the TIFFs and share the basename). Memory is the limiting factor on a laptop:

  • Without sub-scene flags: SETSM builds image pyramids for the entire scene by default. Two UInt16 images plus pyramids exceed 14 GB RAM and the container is OOM-killed (exit code 137) on a 16 GB machine.

  • With -boundary_* flags: SETSM only reads and pyramids the subset of each image needed for the requested output extent, so memory scales with the output area, not the input image size.

Also, note that SETSM’s user manual warns against -seed <filepath> <sigma>: “We caution that it is better to not use a seed DEM if possible, as it can only negatively impact the quality of the SETSM DEM.”

Docker build details
git clone https://github.com/setsmdeveloper/SETSM.git
cd SETSM

docker build --platform linux/amd64 -t setsm -f- . <<'DOCKERFILE'
FROM ubuntu:24.04 AS builder
RUN apt-get update && apt-get install -y --no-install-recommends \
    g++ make git \
    libgeotiff-dev libtiff-dev libproj-dev libjpeg-dev zlib1g-dev \
    && rm -rf /var/lib/apt/lists/*
COPY . /opt/SETSM
WORKDIR /opt/SETSM
RUN make INCS="-I/usr/include/geotiff"

FROM ubuntu:24.04
RUN apt-get update && apt-get install -y --no-install-recommends \
    libgeotiff5 libgomp1 libtiff6 libproj25 \
    && rm -rf /var/lib/apt/lists/*
COPY --from=builder /opt/SETSM/setsm /usr/local/bin/setsm
COPY --from=builder /opt/SETSM/default.txt /usr/local/share/setsm/default.txt
WORKDIR /data
ENTRYPOINT ["sh", "-c", "cp /usr/local/share/setsm/default.txt /data/default.txt 2>/dev/null; exec setsm \"$@\"", "--"]
DOCKERFILE

Multi-stage build — the final image contains only the setsm binary and runtime libraries. The default.txt config file is bundled and auto-copied at runtime (SETSM requires it in the working directory).

Run#

docker run --platform linux/amd64 --rm --name setsm_boundary \
    --memory 11g --cpus 6 \
    -v /path/to/data:/data -w /data setsm \
    -image 1040010007A93700_P001.tif -image 1040010007CA4D00_P001.tif \
    -outpath /data/results -outres 2 -mem 10 -minH 0 -maxH 300 \
    -boundary_min_X 476000 -boundary_min_Y 3635600 \
    -boundary_max_X 479000 -boundary_max_Y 3638600 \
    -projection utm

The boundary defines a 3 km × 3 km UTM 11N area matching the ASP processing extent.

Metric

Value

Computation time

~20 min

Peak memory (SETSM-reported)

2.72 GB

Docker --memory limit

11 GB

Output DEM

1500 × 1500 px, 2 m, EPSG:32611

Output std dev

39.6 m

Convergence angle

21.2°

Hillshade Comparison#

SETSM resolves the same urban structure as ASP — buildings, streets, and the campus / valley and sea cliff topography are all clearly visible. Similar to CARS, SETSM does attempt to correlate more pixels, including over the ocean surface. Areas with more heavy vegetation are also correlated, whereas these are left as voids in the ASP DEM. Some of these correlated pixels appear to be blunders (pits and mounds) on close inspection. In general, ASP (with these carefully selected processing parameters) appears to take a more conservative approach to correlation.

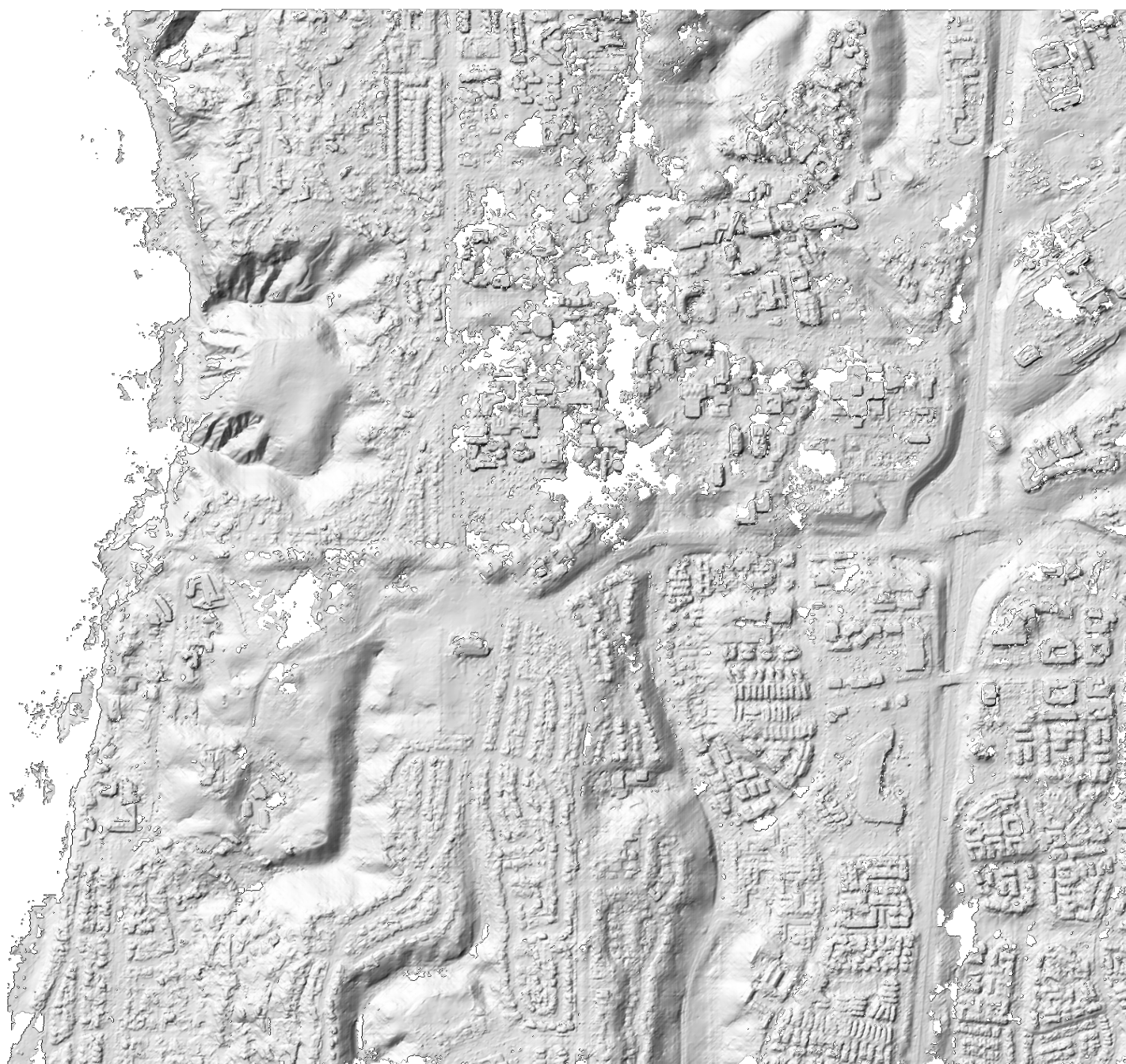

ASP 2m ASP 2m DEM

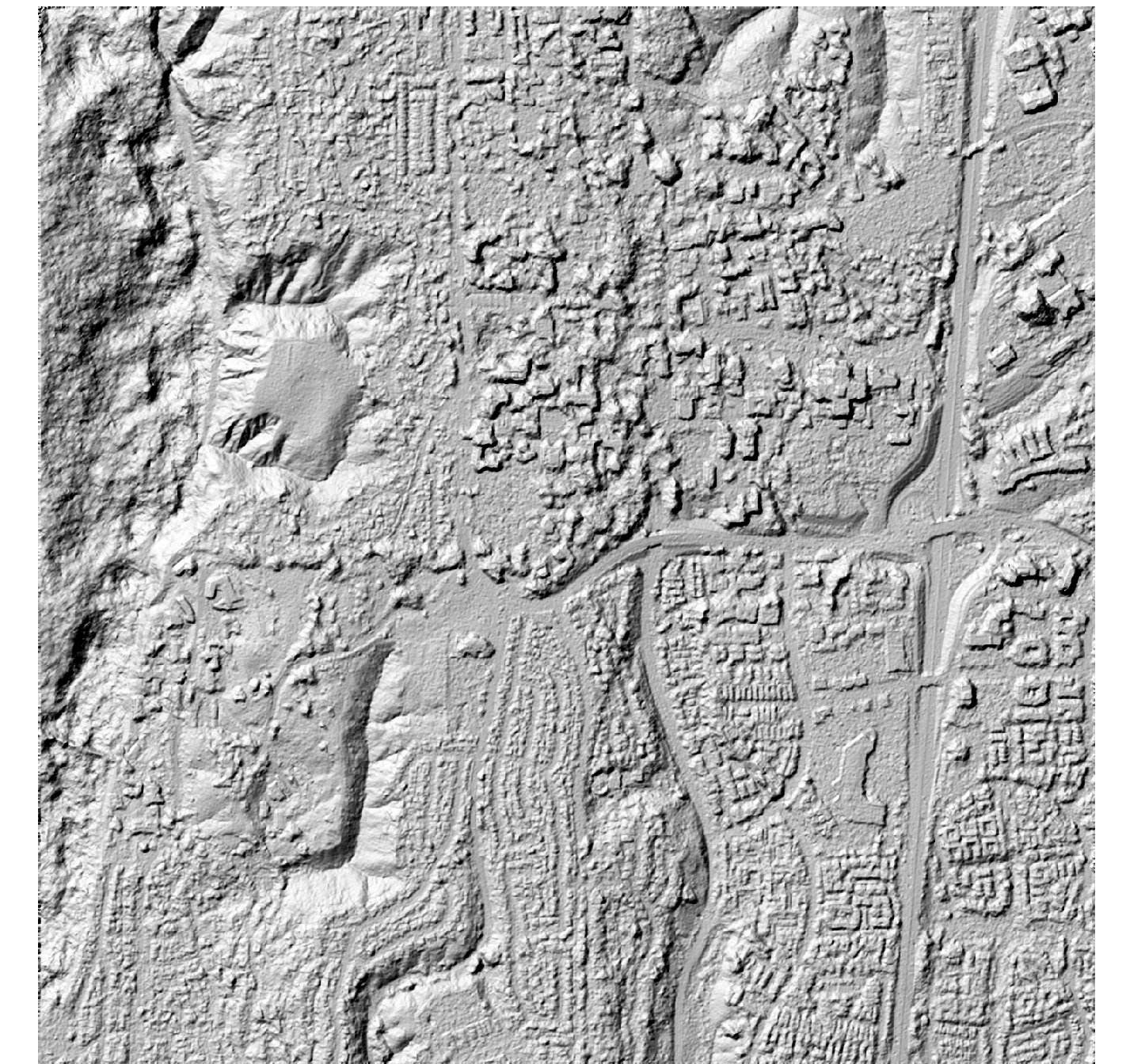

SETSM 2m SETSM 2m DEM
